20吨新款钢丝绳葫芦

产品分类: 钢丝绳电动葫芦
    20吨新款钢丝绳葫芦
    订购热线:0571-88566929

      1.low noise
      2.highly reliable breaking system
      3.hoisting motor with a thermal protector
      4.Efficient maintenance

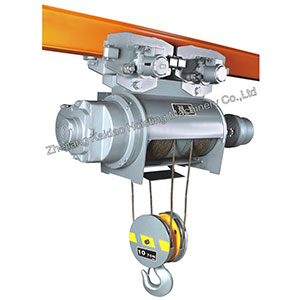

      20T electric wire rope hoist with motorized trolley

      This is an orthodox type of hoist widely utilized for general purposes.

      It boasts high performance for use in rugged jods such as general production in

      factories,mining,railroads and warehouse.

      Technical Parameter

      Modle

      HKDS2004

      Capacity(T)

      20

      Lifting height(M)

      12

      Hoisting lifting speed(m/min)   50HZ

      4.2

      Hoisting lifting speed(m/min)    60HZ

      5.0

      Lifting motor power (kw)  50HZ

      7.5*2

      Lifting motor power (kw)  60HZ

      9*2

      No. of poles

      4

      Traversing speed (m/min)   50HZ

      14

      Traversing speed (m/min)    60HZ

      17

      Motor power (kw)   50hz

      0.7x2

      Motor power(kw)    60hz

      0.84x2

      No. of poles

      4

      wire rope falls

      4

      wire rope composition

      6xFi(29)WRC-B

      Wire rope dia.(mm)

      Φ22.4

      Operating method

      Push-botton operation

      Electric source (3 phase)

      200-600V   50Hz/60Hz
